Customized FFU

Model No.︰

-

Brand Name︰

IONSTAT

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

The FFU laminar flow air supply unit module can be connected and used. FFU is widely used in applications such as clean rooms, clean workbenches, clean production lines, assembled clean rooms and laminar flow hoods.

● The fan draws air in from the top of the FFU and passes through the filter. The filtered clean air is sent out uniformly at a wind speed of 0.45m/s±20% on the entire air outlet surface.

● Using the latest American technology, it is suitable for obtaining a high-level clean environment in various environments. It provides high-quality clean air for clean rooms and micro-environments of different sizes and different cleanliness levels.



Installation steps of fan filter unit (FFU):

   (1) When installing a high-efficiency filter, stop the machine.

  (2) Before installation, point the new high-efficiency filter to a bright place, and observe with the naked eye whether the high-efficiency filter is damaged due to transportation or other reasons. If the filter paper has leaks, it cannot be used.

  (3) The fan filter unit is mainly used in newly-built clean rooms and clean workshops. It can improve the cleanliness level, reduce noise and vibration, and also greatly reduce the cost. It is convenient to install and maintain. It is an ideal component for a clean environment.

  (4) When installing the high-efficiency filter, first lift the box body, then take out the failed high-efficiency filter, replace it with a new one, make sure that the frame is sealed, and then return the box cover to the original position.

   (5) When installing the high-efficiency filter, pay special attention to unpacking, handling and installation to ensure that the filter paper is intact and undamaged, and it is forbidden to touch the filter paper to cause damage.

   2. Fan Filter Unit (FFU) Purpose:

  (1) The fan filter unit is mainly used in newly-built clean rooms and clean factory-style renovations. It can improve the cleanliness level, reduce noise and vibration, and also greatly reduce the cost. It is convenient to install and maintain. It is an ideal component for a clean environment.

(2) The fan filter unit (FFU) can be used in modular connection, making the FFU fan filter unit *** used in clean rooms, dust-free operation tables, dust-free production lines, assembled clean rooms and local hundreds of applications . The FFU fan filter unit can be equipped with primary and high-efficiency two-stage filters.

  (3) The fan filter unit (FFU) is particularly suitable for assembling into an ultra-clean production line. It can be arranged as a single FFU according to the process needs, or multiple FFUs can be used to form a 100-level assembly line.

  (4) Fan filter unit (FFU) computer group control system function.

  (5) The fan filter unit (FFU) reduces the operating cost. The FFU is simple and convenient in the later operation and maintenance; it can be controlled and managed in different areas and save energy, which truly meets the current low-carbon requirements.



FFU size(mm)

W575*L575*H230

W575*L1175*H230

W875*L1175*H230

W1175*L1175*H230

W725*L1475*H230

Filter Size(mm)

W570*L570*H69

W570*L1170*H69

W870*L1170*H69

W1170*L1170*H69

W720*L1470*H69

Air Volume m³/h

500

1000

1500

2000

1500

Noise dB

48-54

48-54

50-56

52-58

50-56

Consummation Power W

170

170

210

275

210

Weight kg

28

35

47

55

50

Material

Steel plate paint/aluminum zinc plate/stainless steel

Input



AC 220Vor110V/380V 50Hz /60Hz



Payment Terms︰ TT

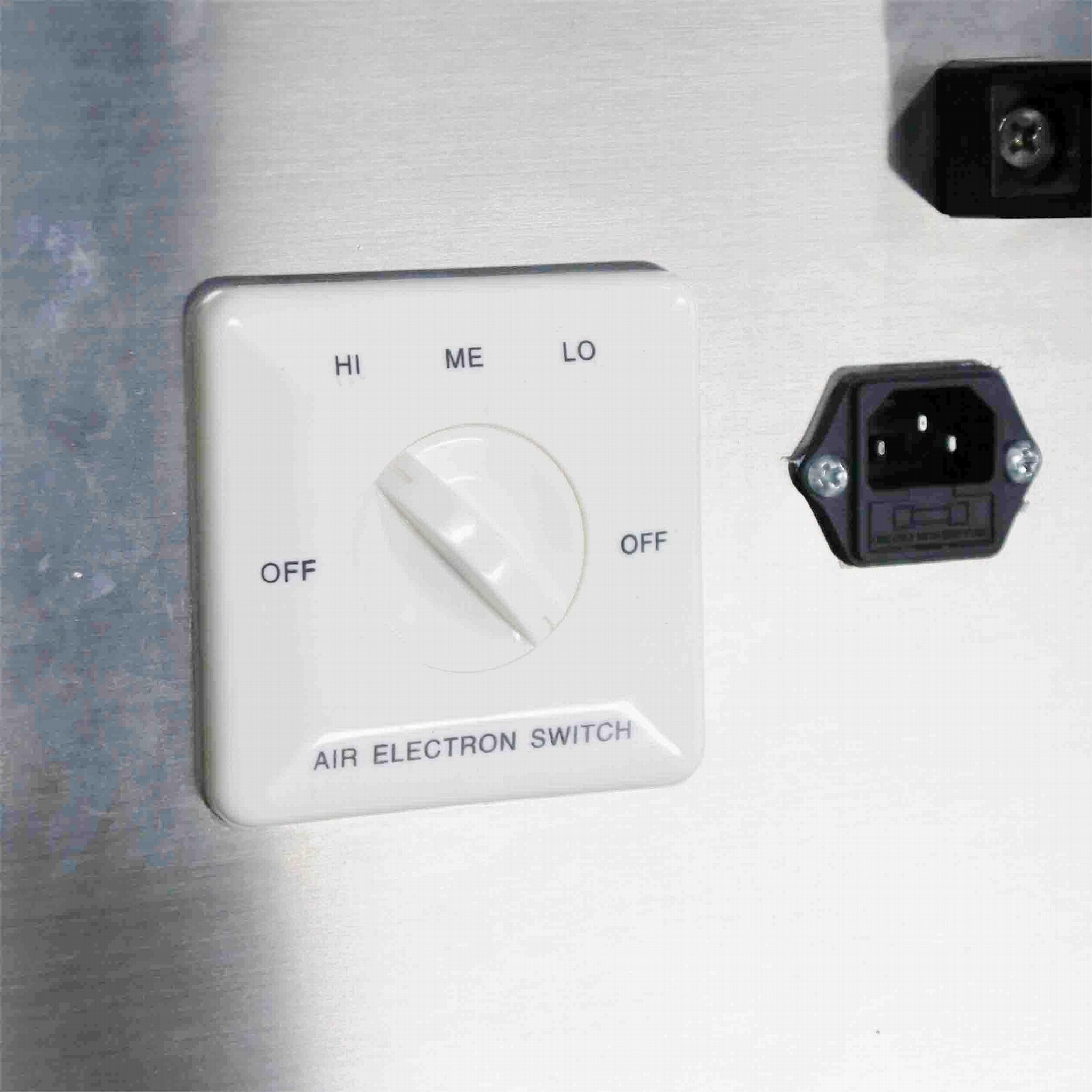

Product Image
